Connection Arguments

This document describes the connection arguments and how they are used in Polynomial Identity Language.

What is a connection argument?

Given a vector $a = ( a_1 , \dots , a_n) \in \mathbb{F}_n$ and a partition ${\large{\S}} = \{ S_1, \dots , S_t \}$ of $[n]$, we say "$a$ $\textit{copy-satisfies}$ ${\large{\S}}$" if for each $S_k \in {\large{\S}}$, we have that $a_i = a_j$ whenever $i, j \in S_k$ , with $i, j \in [n]$ and $k \in [t]$.

Moreover, we say that a protocol $(\mathcal{P}, \mathcal{V})$ is a connection argument if the protocol can be used by $\mathcal{P}$ to prove to $\mathcal{V}$ that a vector $\textit{copy-satisfies}$ a partition of $[n]$.

Example

Let ${\large{\S}} = \{\{2\}, \{1, 3, 5\}, \{4, 6\}\}$ be a specified partition of $[6]$.

Observe the two columns depicted below:

The vector $\mathtt{a}\ \textit{copy-satisfies}\ {\large{\S}}$ because $\mathtt{a}_1 = \mathtt{a}_3 = \mathtt{a}_5 = 3$ and $\mathtt{a}_4 = \mathtt{a}_6 = 1$.

Observe that, since the singleton $\{2\}$ is in ${\large{\S}}$, then $\mathtt{a}_2$ is not related to any other element in $\mathtt{a}$.

Also, the vector $\mathtt{b}$ does not $\textit{copy-satisfies}\ {\large{\S}}$ because $\mathtt{b}_1 = \mathtt{b}_5 =3 \not= 7 = \mathtt{b}_3$.

In the context of programs, connection arguments can be written easily in PIL by introducing a column associated with the chosen partition. This is also done in [GWC19].

Recall that column values are evaluations of a polynomial at $G = \langle g \rangle$ and $\texttt{N}$ is the length of the execution trace.

Given a polynomial $\texttt{a}$ and a partition ${\large{\S}}$, suppose we want to write in PIL a constraint attesting to the $\textit{copy-satisfiability}$ of a certain ${\large{\S}}$.

We first construct a permutation $\sigma : [n] \to [n]$ such that for each set $S_i \in {\large{\S}}$, we have that $\sigma({\large{\S}})$ contains a cycle of all elements of $S_i$.

In the above example, we would have $\sigma = (5, 2, 1, 6, 3, 4)$. So then, we construct a polynomial $S_a$ that encodes $\sigma$ in the exponent of $g$. That is:

for $i \in [n]$.

In the PIL context, the previous connection argument between a column $\texttt{a}$ and a column $\texttt{SA}$, encoding the values of $S_{\texttt{a}}$, can be declared using the keyword $\texttt{connect}$ using the syntax: $\texttt{a}\ \texttt{connect}\ \{\texttt{SA}\}$.

include "config.pil";

namespace Connection(%N);
pol commit a;
pol constant SA;

{a} connect {SA};

A valid execution trace for this example was shown in Table 1 above.

Multiple copy satisfiability

Connection arguments can be extended to several columns by encoding each column with a “part” of the permutation. Informally, the permutation is now able to span across the values of each of the involved polynomials in a way that the cycles formed in the permutation must contain the same value.

Multi-column copy satisfiability

Given vectors $a_1, \dots , a_k$ in $\mathbb{F}^n$ and a partition ${\large{\S}} = \{S_1,...,S_t\}$ of $[kn]$, we say $a_1,...,a_k$ $\textit{copy-satisfy}\ {\large{\S}}$ if for each $S_m \in {\large{\S}}$, we have that $a_{`{l_1}`,i} = a_{`{l_2}`,j}$ whenever $i,j \in S_m$, with $i,j \in [n]$, $l_1, l_2 \in [k]$ and $m \in [t]$.

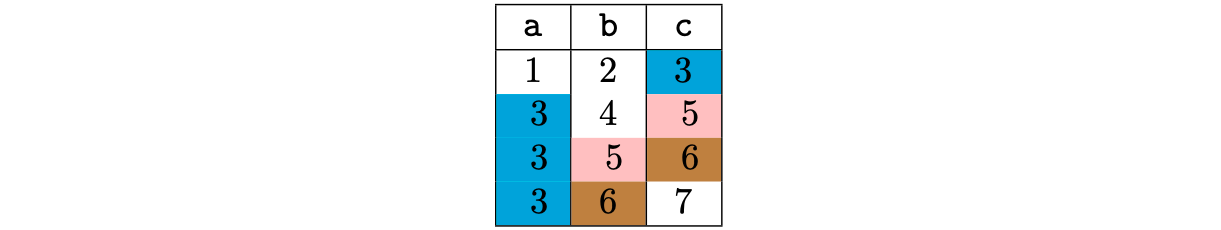

For example, say that we have ${\large{\S}} = \{\{1\}, \{2,3,4,9\}, \{5\}, \{6\}, \{7,10\}, \{8,11\}, \{12\}\}$. Then, the below table depicts an execution trace for three columns $\texttt{a}, \texttt{b}, \texttt{c}$ that copy-satisfies ${\large{\S}}$.

We reduce this problem to the one column case by thinking of the permutation $\sigma$ as applied to the concatenation of column $\texttt{a}$, then $\texttt{b}$ and finally $\texttt{c}$.

So, the permutation $\sigma$ that makes $\texttt{a}$, $\texttt{b}$ and $\texttt{c}$ copy-satisfy ${\large{\S}}$ is $(1, 9, 2, 3, 5, 6, 10, 11, 4, 7, 8, 12)$.

In this case we construct polynomials $S_{\texttt{a}}$, $S_{\texttt{b}}$ and $S_c$ such that:

where $k_1, k_2 \in \mathbb{F}$ are introduced here as a way of obtaining more elements (in a group $G$ of size $n$) and enabling correct encoding of the $[3n] \to [3n]$ permutation $\sigma$.

See [GWC19] for more details on this encoding.

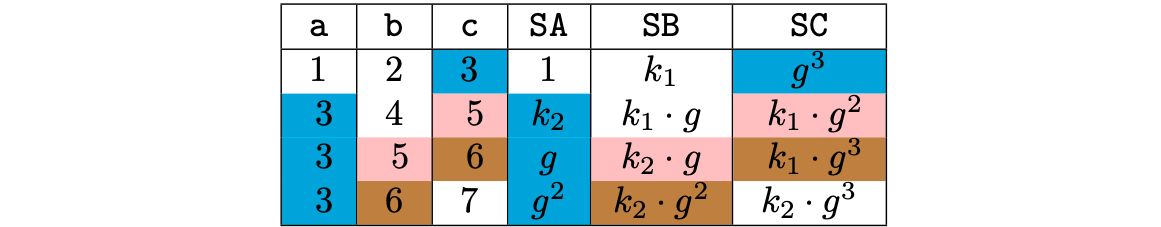

The below table shows how to compute the polynomials $\texttt{SA}$, $\texttt{SB}$ and $\texttt{SC}$ encoding the permutation of the above example:

The PIL code for this example is easily written as follows:

include "config.pil";

namespace Connection(%N);
pol commit a, b, c;
pol constant SA, SB, SC;

{ a, b, c } connect { SA, SB, SC };
